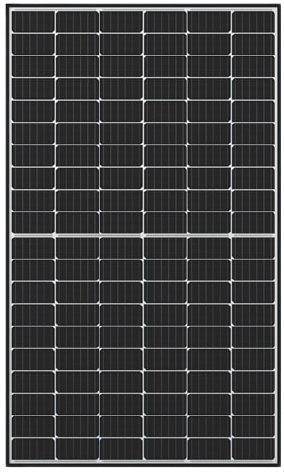

Q.PEAK DUO-G6+ 345-355
Nominal Power
345 - 355 Wp
Maximum System Voltage
1000 V
Format
1740 mm 1030 mm 32 mm
Efficiency
Up to 20.1%
Wind/Snow Load
4000/5400
Weight
19.9kg
Warranty
At least 98 % of nominal power during first year. Thereafter max. 0.54 % degradation per year.
At least 93.1 % of nominal power up to 10 years. At least 85 % of nominal power up to 25 years.
For more information download the Q-Cells brochure, and warranty.
Q.PEAK DUO-G6 340-355
Nominal Power
345 - 355 Wp
Maximum System Voltage
1000 V
Format
1740 mm 1030 mm 32 mm
Efficiency
Up to 20.1%
Wind/Snow Load
4000/5400
Weight
19.9kg
Warranty
At least 98 % of nominal power during first year. Thereafter max. 0.54 % degradation per year.
At least 93.1 % of nominal power up to 10 years. At least 85 % of nominal power up to 25 years.
For more information on all available materials, finishes and colors, download the Q-CELLS brochure, and warranty.

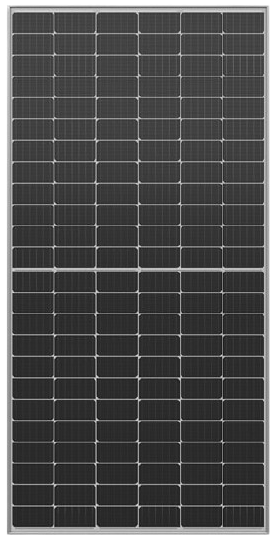

Q.PEAK DUO L-G6 405-425
Nominal Power
405 - 425 Wp
Maximum System Voltage
1000 V
Format
2080 mm 1030 mm 35 mm
Efficiency
Up to 20.1%
Wind/Snow Load
2400/5400
Weight
24.5kg
Warranty
At least 98 % of nominal power during first year. Thereafter max. 0.54 % degradation per year.
At least 93.1 % of nominal power up to 10 years. At least 85% of nominal power up to 25 years.
For more information on all available materials, finishes and colors, download the Q-CELLS brochure, and warranty.
Q.PEAK DUO BLK-G6 330-345
Nominal Power
405 - 425 Wp
Maximum System Voltage
1000 V
Format
2080 mm 1030 mm 35 mm
Efficiency
Up to 20.1%
Wind/Snow Load
2400/5400
Weight
24.5kg
Warranty
At least 98% of nominal power during first year. Thereafter max. 0.54% degradation per year.
At least 93.1% of nominal power up to 10 years. At least 85% of nominal power up to 25 years.
For more information on all available materials, finishes and colors, download the Q-CELLS brochure, and warranty.
BENEFITS OF THE Q.PEAK DUO-G6 SOLAR PANEL
LOW LEVELISED COST OF ELECTRICITY
Higher yield per surface area, lower BOS costs, higher power classes, and an efficiency rate of up to 19.5 %.
INNOVATIVE ALL-WEATHER TECHNOLOGY
Optimal yields, whatever the weather with excellent low-light and temperature behavior.
ENDURING HIGH PERFORMANCE
Long-term yield security with Anti LID and Anti PID Technology , Hot-Spot Protect and Traceable Quality Tra.Q.
STATE OF THE ART MODULE TECHNOLOGY
Q.ANTUM DUO combines cutting edge cell separation and innovative wiring with Q.ANTUM Technology.
EXTREME WEATHER RATING
High-tech aluminum alloy frame, certified for high snow (5400 Pa) and wind loads (4000 Pa) regarding IEC.
A RELIABLE INVESTMENT
Inclusive 12-year product warranty and 25-year linear performance warranty.
