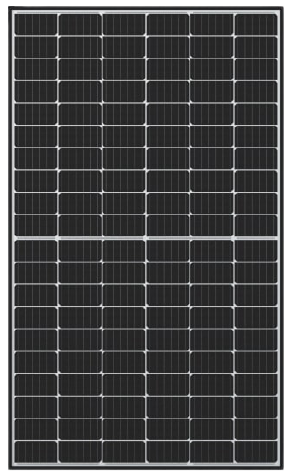

Q.PEAK DUO-G5 315-330
Nominal Power
315 - 330 Wp
Maximum System Voltage
1000 V
Format
1685mm x 1000mm x 32mm
Efficiency
Up to 19.9%
Wind/Snow Load
4000/5400
Weight
18.7kg
Warranty
At least 98 % of nominal power during first year. Thereafter max. 0.54 % degradation per year.
At least 93.1 % of nominal power up to 10 years. At least 85 % of nominal power up to 25 years.

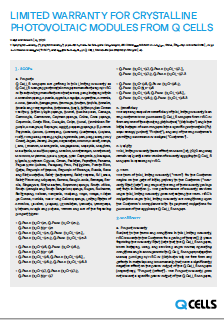

For more information download the Q-CELLS brochure, and warranty.

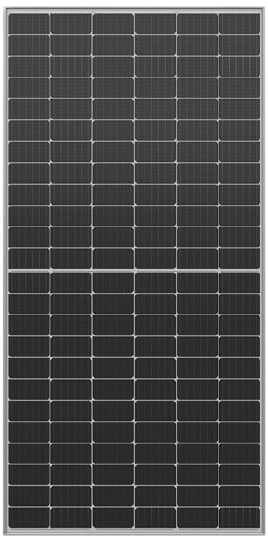

Q.PEAK DUO L-G5 380-400
Nominal Power
380 - 400 Wp
Maximum System Voltage
1000 V
Format
2015mm x 1000mm x35mm
Efficiency
Up to 20.1%
Wind/Snow Load
4000/5400
Weight
23kg
Warranty
At least 98 % of nominal power during first year. Thereafter max. 0.54 % degradation per year.
At least 93.1 % of nominal power up to 10 years. At least 85 % of nominal power up to 25 years.
For more information on all available materials, finishes and colors, download the Q-CELLS brochure, and warranty.

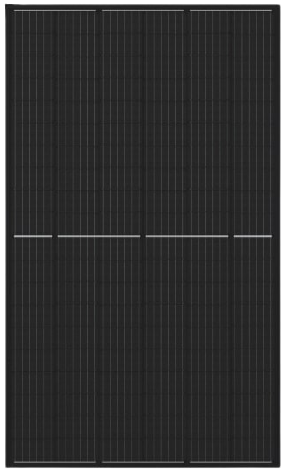

Q.PEAK DUO BLK-G5 300-320
Nominal Power
305 - 330 Wp
Maximum System Voltage
1000 V
Format
1685mm x 1000mm x 32mm
Efficiency
Up to 19.3%
Wind/Snow Load
4000/5400
Weight
18.7kg
Warranty
At least 98 % of nominal power during first year. Thereafter max. 0.54 % degradation per year.
At least 93.1 % of nominal power up to 10 years. At least 85% of nominal power up to 25 years.
For more information on all available materials, finishes and colors, download the Q-CELLS brochure, and warranty.
BENEFITS OF THE Q.PEAK DUO-G5 SOLAR PANEL
STATE OF THE ART MODULE TECHNOLOGY
Q.ANTUM DUO combines cutting edge cell separation and innovative wiring with Q.ANTUM Technology.
SHORTEST INVESTMENT PAYBACK-TIME
Higher yield per surface area, lower BOS costs, higher power classes, and an efficiency of up to 19.9 %
INNOVATIVE ALL-WEATHER TECHNOLOGY
Optimal yields, whatever the weather with excellent low-light and temperature behavior.
ENDURING HIGH PERFORMANCE
Long-term yield security with Anti LID and Anti PID Technology , Hot-Spot Protect and Traceable Quality Tra.Q.
EXTREME WEATHER RATING
High-tech aluminum alloy frame, certified for high snow (5400 Pa) and wind loads (4000 Pa) regarding IEC.
A RELIABLE INVESTMENT
Inclusive 12-year product warranty and best in class 25-year performance guarantee.
