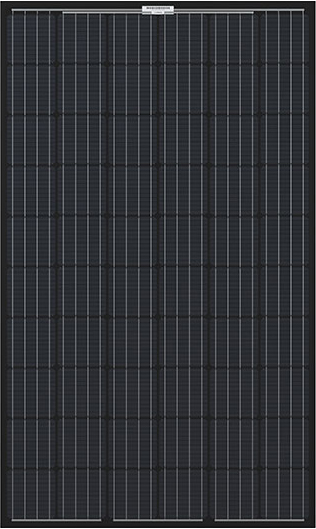

Q.Peak Blk-G4.1
MONOCRYSTALLINE Q.ANTUM
TECHNOLOGY MODULE
The new Q.PEAK BLK-G4.1 is the beautiful high-performance module for residential buildings thanks to its innovative cell technology Q.ANTUM. The world-record cell design was developed to achieve the best performance under real conditions even with low radiation intensity and on clear, hot summer days.
Q.PEAK BLK-G4.1 290-300
Q.ANTUM SOLAR MODULE
Nominal Power: 290 300 Wp
Maximum System Voltage: 1000 V
Format: 1670mm x 1000mm x 32mm
Efficiency: Up to 18.3 %
Wind/Snow Load: 4000 / 5400
Weight: 18.5 kg
Warranty:
- At least 98% of nominal power during first year. Thereafter max. 0.6% degradation per year.
- At least 92.6% of nominal power up to 10 years. At least 83.6% of nominal power up to 25 years.
STATE OF THE
ART MODULE TECHNOLOGY
Q.ANTUM DUO combines cutting edge cell separation and innovative wiring with Q.ANTUM Technology.
Q.ANTUM TECHNOLOGY :
SHORTEST INVESTMENT PAYBACK-TIME
Higher yield per surface area, lower BOS costs, higher power classes, and an efficiency of up to 19.9 %
INNOVATIVE ALL-WEATHER TECHNOLOGY
Optimal yields, whatever the weather with excellent low-light and temperature behavior.
ENDURING HIGH PERFORMANCE
Long-term yield security with Anti LID and Anti PID Technology, Hot-Spot Protect and Traceable Quality Tra.Q
EXTREME
WEATHER RATING
High-tech aluminum alloy frame, certified for high snow (5400 Pa) and wind loads (4000 Pa) regarding IEC.
A RELIABLE
INVESTMENT
Inclusive 12-year product warranty and best in class 25-year performance guarantee.
