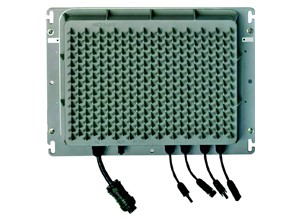

ProHarvest GenXL 10kW String Inverter

10kW 480V Model

• Product Highlights
• Rugged 3-phase 480V plug & play system
• Small and light (hand holdable, 30.6lb.)
• Utility-Interactive; Listed to UL 1741 SA
• Peak 98.2% efficiency, CEC efficiency of 97.5%
• 200-850VDC MPP voltage range for 600V and 1,000V systems
• 10kW AC full power MPP voltage range 450-850V
• Two DC string inputs with independent monitoring and MPPT management.
• Waterproof NEMA6, silent convection cooling

Applications

• Rooftop Commercial: usable where other solutions just wont work such as coastal, desert and high altitude locations.
• Car ports, parking and shade structures: can be mounted at any orientation, under modules, on racking without extra strengthening (clear of risk of liability from vandalism)

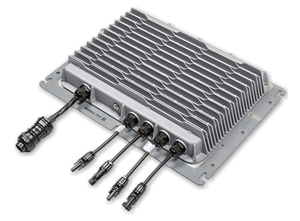

ProHarvest 480V String Inverter

8kW 3-Phase Inverter

• Product Highlights
• Rugged 3-phase 480V plug & play system
• Small and light (hand holdable, 24lb.)
• Non-isolated inverter for use with ungrounded DC systems
• 98.6% peak efficiency
• 200-850V MPP voltage range for 600V and 1,000V systems
• 8kW, full power MPP voltage 425-850V
• Two DC string inputs with independent monitoring and MPPT management
• Waterproof NEMA6, silent convection cooling

Designed for reliability, the ProHarvest 480V String Inverter is an easy to install, modular system optimized specifically for commercial rooftop ungrounded solar array applications. Unlike other string inverters, each string is individually monitored and managed by the inverter. Inverter AC cables must be ordered separately.

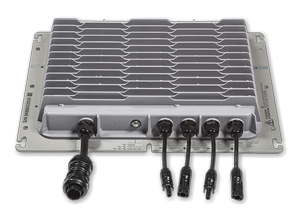

ProHarvest 208V String Inverter

5.75kW 3-Phase Inverter

• Product Highlights
• Rugged 3-phase 208V plug & play system
• Small and light (hand holdable, 24lb.)
• Non-isolated inverter for use with ungrounded DC systems
• 98% peak, 97% CEC efficiency
• 200-850V MPP voltage range for 600V and 1,000V systems
• 5.75kW, full power MPP voltage 325-525V
• Two DC string inputs with independent monitoring and MPPT management
• Waterproof NEMA6, silent convection cooling

Designed for reliability, the ProHarvest 208V String Inverter is an easy to install, modular system optimized specifically for commercial rooftop ungrounded solar array applications. Unlike other string inverters, each string is individually monitored and managed by the inverter. Inverter AC cables must be ordered separately.

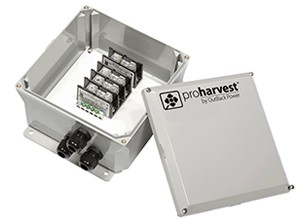

ProHarvest AC Splice

Junction Box

• Product Highlights
• Can work with up to 3 ProHarvest inverters
• Combine AC outputs
• Small and inexpensive
• Durable outside and in inclement weather
• NEMA4 polycarbonate enclosure
• Corrosion/UV resistant
• Mountable flat or upright

The ProHarvest AC Splice is a compatible junction box suitable for combining up to 3 ProHarvest solar inverters into one home that runs to an AC load center. With a weatherproof NEMA4 polycarbonate enclosure, the AC splice is perfect for mounting outdoors. Includes 3 gland fittings for up to 3 inverter AC cables. Inverter AC cables must be ordered separately.

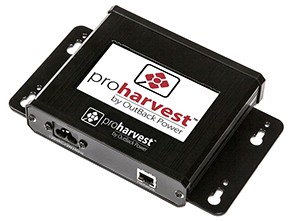

ProHarvest Communications Gateway

Monitoring and Control

• Product Highlights
• Touchscreen display
• Communication over power line with inverters
• Ethernet connection for connection to a LAN
• SD card storage of up to 10 years of data
• Diagnostic USB port may be used to power other low-power devices

cations Gateway adds a wealth of monitoring and control when combined with a ProHarvest Inverter. The gateway communicates with local inverters over the power line using a proprietary communication method that is robust and reliable. Once connected, it will log data and store it on an internal memory card. Information may be accessed through the touch screen, or over an Ethernet network.

Hardware Accessories

Cables, Memory Storage, and Mounting Hardware

• Product Highlights
• Wide selection of AC cables for ProHarvest Inverters and Communication Gateways

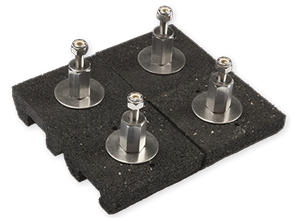

• Ballast Roof Mounting System is a simple solution for rooftop installations of ProHarvest Inverters
• RJ45 cable and memory card available for use with ProHarvest Communications Gateway

OutBack Power sells many accessories, including cables, mounting kits and memory cards to supplement the ProHarvest product line.
