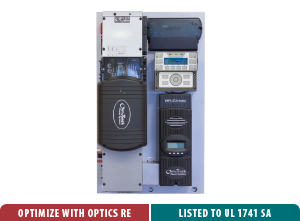

FLEXpower ONE FXR
Fully Pre-Wired Single Inverter System
- Product Highlights
- FLEXpower ONE FXR
- Product Highlights
- Factory tested, pre-wired and pre-configured systems
- Fast installationjust hang on the wall with the bracket (included) and make connections
- Off-grid and grid-tied functionality in one flexible system
- Powerful system in a compact, space-saving footprint
- Field-upgradable software
- Ample AC and DC breaker provisions
- GridZero technology effectively lets users zero out the utility grid if enough renewables are present, reducing or even eliminating grid dependence
- Advanced Battery Charging (ABC) supports a wide range of battery technologies including lithium-ion
- All components carry necessary ETL certifications
OutBacks pre-assembled and pre-wired FLEXpower systems are equipped with the OutBack FXR / VFXR Series inverter/chargers. This means that the most advanced inverter features are now available on the industrys most trusted and proven systems platform, for unmatched flexibility and value.
- 6 models available for 120VAC or 230VAC applications, ranging from 2500W to 3600W.
- 50Hz/60Hz selectable for regional diversity
- Programmable for seven different modes including GridZero, which blends utility power and stored renewable energy, minimizing grid dependence; also support mode for seamless generator integration
- Advanced Battery Charging (ABC) with expanded charging voltages and time parameters accommodates charging profiles of new and emerging storage technologies including lithium ion, and aqueous types
- Field-upgradability eliminates system down-time for critical updates
- Remote system control and monitoring available through any internet-enabled device with OPTICS RE

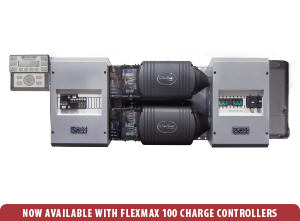

FLEXpower TWO FXR
Fully Pre-Wired Dual Inverter System
- Product Highlights
- Factory tested, pre-wired and pre-configured systems
- Fast installationjust hang on the wall with the bracket (included) and make connections
- Off-grid and grid-tied functionality in one flexible system
- Powerful system in a compact, space-saving footprint
- Field-upgradable software
- Ample AC and DC breaker provisions
- GridZero technology effectively lets users zero out the utility grid if enough renewables are present, reducing or even eliminating grid dependence
- Advanced Battery Charging (ABC) supports a wide range of battery technologies including lithium-ion
- All components carry necessary ETL certifications
OutBacks pre-assembled and pre-wired FLEXpower systems are equipped with the OutBack FXR / VFXR Series inverter/chargers. This means that the most advanced inverter features are now available on the industrys most trusted and proven systems platform, for unmatched flexibility and value.
- 7 models available for 120VAC or 230VAC applications, ranging from 5000W to 7200W
- 50Hz/60Hz selectable for regional diversity
- Programmable for seven different modes including GridZero, which blends utility power and stored renewable energy, minimizing grid dependence; also support mode for seamless generator integration
- Advanced Battery Charging (ABC) with expanded charging voltages and time parameters accommodates charging profiles of new and emerging storage technologies including lithium ion, and aqueous types
- Field-upgradability eliminates system down-time for critical updates
- Remote system control and monitoring available through any internet-enabled device with OPTICS RE

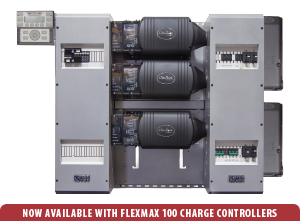

FLEXpower THREE FXR
Fully Pre-Wired Triple Inverter System
- Product Highlights
- Factory tested, pre-wired and pre-configured systems
- Fast installationjust hang on the wall with the bracket (included) and make connections
- Off-grid and grid-tied functionality in one flexible system
- Powerful system in a compact, space-saving footprint
- Field-upgradable software
- Ample AC and DC breaker provisions
- In grid-tied or off-grid applications, stack up to nine inverter/chargers for three-phase power needs
- GridZero technology effectively lets users zero out the utility grid if enough renewables are present, reducing or even eliminating grid dependence
- Advanced Battery Charging (ABC) supports a wide range of battery technologies including lithium-ion
- All components carry necessary ETL certifications
OutBacks pre-assembled and pre-wired FLEXpower systems are equipped with the OutBack FXR / VFXR Series inverter/chargers. This means that the most advanced inverter features are now available on the industrys most trusted and proven systems platform, for unmatched flexibility and value.
- 3 models available for 120/208VAC applications, ranging from 9kW to 10.8kW
- 50Hz/60Hz selectable for regional diversity
- Programmable for seven different modes including GridZero ,which blends utility power and stored renewable energy, minimizing grid dependence; also support mode for seamless generator integration
- Advanced Battery Charging (ABC) with expanded charging voltages and time parameters accommodates charging profiles of new and emerging storage technologies including lithium ion, and aqueous types
- Field-upgradability eliminates system down-time for critical updates
- Remote system control and monitoring available through any internet-enabled device with OPTICS RE

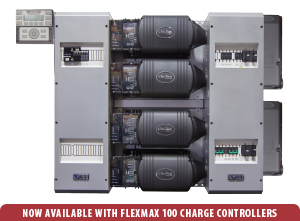

FLEXpower FOUR FXR
Fully Pre-Wired Quad Inverter System
- Product Highlights
- Factory tested, pre-wired and pre-configured systems
- Fast installationjust hang on the wall with the bracket (included) and make connections
- Off-grid and grid-tied functionality in one flexible system
- Powerful system in a compact, space-saving footprint
- Field-upgradable software
- Ample AC and DC breaker provisions
- GridZero technology effectively lets users zero out the utility grid if enough renewables are present, reducing or even eliminating grid dependence
- Advanced Battery Charging (ABC) supports a wide range of battery technologies including lithium-ion
- All components carry necessary ETL certifications
OutBacks pre-assembled and pre-wired FLEXpower systems are equipped with the OutBack FXR / VFXR Series inverter/chargers. This means that the most advanced inverter features are now available on the industrys most trusted and proven systems platform, for unmatched flexibility and value.
- Two models available for 120/240VAC applications, ranging from 12kW to 14.4kW
- 50Hz/60Hz selectable for regional diversity
- Programmable for seven different modes including GridZero, which blends utility power and stored renewable energy, minimizing grid dependence; also support mode for seamless generator integration
- Advanced Battery Charging (ABC) with expanded charging voltages and time parameters accommodates charging profiles of new and emerging storage technologies including lithium ion, and aqueous types
- Field-upgradability eliminates system down-time for critical updates
- Remote system control and monitoring available through any internet-enabled device with OPTICS RE

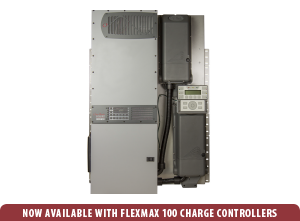

FLEXpower Radian
Fully Pre-Wired 4kW or 8kW Inverter System
- Product Highlights
- Factory tested, pre-wired and pre-configured
- Fast installation with a pre-assembled system and fully integrated GS load center
- Optimized system footprint
- GridZero technology optimizes the balance between stored and renewable energy sources, minimizing grid dependence
- Advanced Battery Charging (ABC) supports leading-edge battery technologies, including lithium-ion
- Dual AC inputs for seamless generator integration in grid-interactive applications
- Grid-interactive and stand-alone capability in one unit
- System monitoring via web interface with OPTICS RE
- Components carry all of the necessary UL certifications
OutBacks pre-assembled and pre-wired power systems take the concept of fast, easy installation to a new level of performance, value and flexibility with the FLEXpower Radian.
Everything you need, besides power sources and batteries, comes completely integratedjust install the mounting bracket, hang the system on a wall, make the necessary connections and the system is fully operational.
Available with the 60Hz Radian A Series 4kW or 8kW inverter/charger, each model incorporates OutBacks GridZero technology, a superior level of intelligence in energy management for self-generation and self-consumption programs. It provides precise balancing between using stored energy, solar and utility power, blending-in the latter to overcome surges and load spikes. All models feature an Advanced Battery Charging (ABC) profile option to support leading-edge battery technologies such as lithium-ion and others, and enhanced diagnostics for improved performance.
FLEXpower Radian Applications:
The 4kW FLEXpower Radian (FPR- 4048A-300VDC) is ideal for smaller power applicationsincluding homes, cabins, remote communication sites and backup power systems. GFDI protection comes built into the FLEXmax 100 charge controllers.
The 8kW FLEXpower Radian (FPR-8048A-300VDC) is ideal for applications with medium-sized power requirementsincluding larger homes and light commercial or backup power systems. GFDI protection comes built into the FLEXmax 100 charge controllers.
