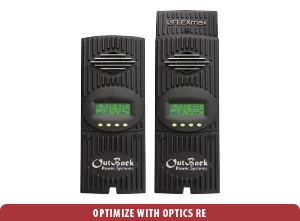

FLEXmax 60/80

Charge Controller

• Product Highlights
• Maximum Power Point Tracking (MPPT)
• Active cooling and intelligent thermal management cooling
• Ambient temperatures as high as 104F (40C)
• Built-in, backlit 80 character display
• Integrated OutBack network communications

The FLEXmax family of charge controllers is the latest innovation in Maximum Power Point Tracking (MPPT) charge controllers from OutBack Power. The innovative FLEXmax MPPT software algorithm is both continuous and active, increasing your photovoltaic array power yield up to 30% compared to non-MPPT controllers. Thanks to active cooling and intelligent thermal management cooling, both FLEXmax charge controllers can operate at their full maximum current rating, 60 Amps or 80 Amps respectively, in ambient temperatures as high as 104F (40C).

Included in all of the FLEXmax Charge Controllers are the revolutionary features first developed by OutBack Power, including support for a wide range of nominal battery voltages and the ability to step-down a higher voltage solar array to recharge a lower voltage battery bank. A built-in, backlit 80 character display shows the current status and logged system performance data for the last 128 days at the touch of a button. The integrated OutBack network communications allows FLEXmax series Charge Controllers to be remotely programmed and monitored via a MATE system display and provides unrivaled complete system integration.

FLEXmax MPPT Charge Controllers are the only choice when you demand a high performance, efficient and versatile charge controller for your advanced power system.

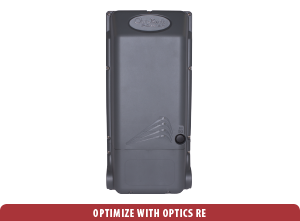

FLEXmax 100

300V MPPT Charge Controller

• Product Highlights
• 100A output for up to 5kW of charging
• Compatible with 24, 36 and 48VDC battery banks
• Integrated ground fault protection
• System configures quickly with smart programming wizards (MATE3s required)
• 300VDC open-circuit voltage limit enables 2-string configuration that minimizes BOS

The FLEXmax 100 is the latest innovation in Maximum Power Point Tracking (MPPT) charge controllers from OutBack Power.

The advanced FM100 MPPT algorithm offers increased energy harvest from the PV array than other MPPT controllers. The FLEXmax 100 delivers both higher voltage and higher power, offering improved flexibility and performance.

OutBack network communications and OPTICS RE compatibility allows the FLEXmax 100 to be remotely programmed, monitored and controlled via any internet connected device providing unrivalled system integration.

The FM100-300VDC is a top-of-the-line high performance, efficient and versatile charge controller for your advanced power system.

NOTICE: The PNL-GFDI-80 series ground fault breakers that are included in many prewired load centers and FP systems are NOT rated for use on circuits shared with an FM100-300VDC! The FM100-300VDC charge controller is equipped with an internal ground-fault protection device and simply requires 300-VDC rated overcurrent protection on its input and output circuits. The PNL-100/125-300VDC series breakers are recommended for the battery side and the PNL-40/60/80-300VDC series breakers are recommended for the PV array side. Due to the different voltage ratings, OutBack Power does not recommend mixing the FM100-300VDC with the FM60 or FM80-150VDC controllers on the same battery bank. Be sure to thoroughly review installation instructions when installing OutBack Power equipment.
